TurboQuant+ Meets Gemma on a Modal L40S

A few months ago I benchmarked TurboQuant+ on an Apple M4, the mixed-precision KV cache scheme from TheTom's ICLR 2026 paper. That post was about what fits on 24GB of unified memory. This one rents a Modal L40S (48GB, ~$1.95/hr), points it at three very different Gemma architectures, and finds out what breaks.

Full code, data, and plan: turboquant-eval on GitHub, branch gemma-turboquant-modal.

TL;DR

• On Gemma 3 12B, TurboQuant+ works exactly as advertised. Turbo3 (3.5 bpv) and Turbo4 (4.25 bpv) give perplexity of 10.27 and 10.24 on wikitext-2, a shade better than the Q8_0 baseline at 10.42. Speed is flat across cache types because at pp=512 on an L40S, a 12B model is compute-bound, not memory-bound.
• On Gemma 4 E4B and 26B A4B (MoE), the TurboQuant+ llama.cpp fork currently produces broken outputs. E4B perplexity lands around 65, the MoE produces perplexity in the thousands. The fork disables upstream attention rotation and applies its own kernel-level Walsh-Hadamard transform, which is transparent on Gemma 3 but not on Gemma 4's head-dim-512 attention path.
• Total Modal spend: $2.15 out of the $15 I had budgeted. L40S is fast enough that 29 benchmark configs finished in a few minutes.

Why L40S

The L40S is the cheapest Modal GPU with enough VRAM to hold a 26B-class model at reasonable quantization. It sits between a MacBook and a datacenter A100, which is the tier most people actually rent when they want to run a model for a weekend project.

Modal lists it at ~$1.95/hr. The full plan wanted three phases (image build, speed sweep, perplexity sweep) budgeted at ~$12.70. Actual spend came in at a seventh of that because an L40S tears through short-context inference much faster than a MacBook does.

The lineup

Model	Class	VRAM @ Q4	Base quant used
Gemma 4 E4B (instruct)	Edge, Per-Layer Embeddings	~3 GB	Q8_0
Gemma 3 12B (instruct)	Dense	~8 GB	Q4_K_M
Gemma 4 26B A4B (instruct)	MoE, 4B active per token	~15 GB	UD-Q4_K_M

One model per architecture class, each with a different attention shape. Gemma 4 E4B uses Per-Layer Embeddings with n_embd_head_k_all=512. Gemma 4 26B A4B is the MoE flagship with 26B total parameters but only 4B active per token. Gemma 3 12B is the boring dense baseline that grounds the comparison.

Benchmarks use the existing llama.cpp knobs: llama-bench -p 512 -n 128 -ngl 99 -fa 1 -r 3 for speed, llama-perplexity -f wiki.test.raw --ctx-size 512 --chunks 128 for quality. Six KV cache types: f16, q8_0, q4_0, turbo4 (4.25 bpv), turbo3 (3.5 bpv), and turbo2 (new in the fork, never benchmarked in the M4 post).

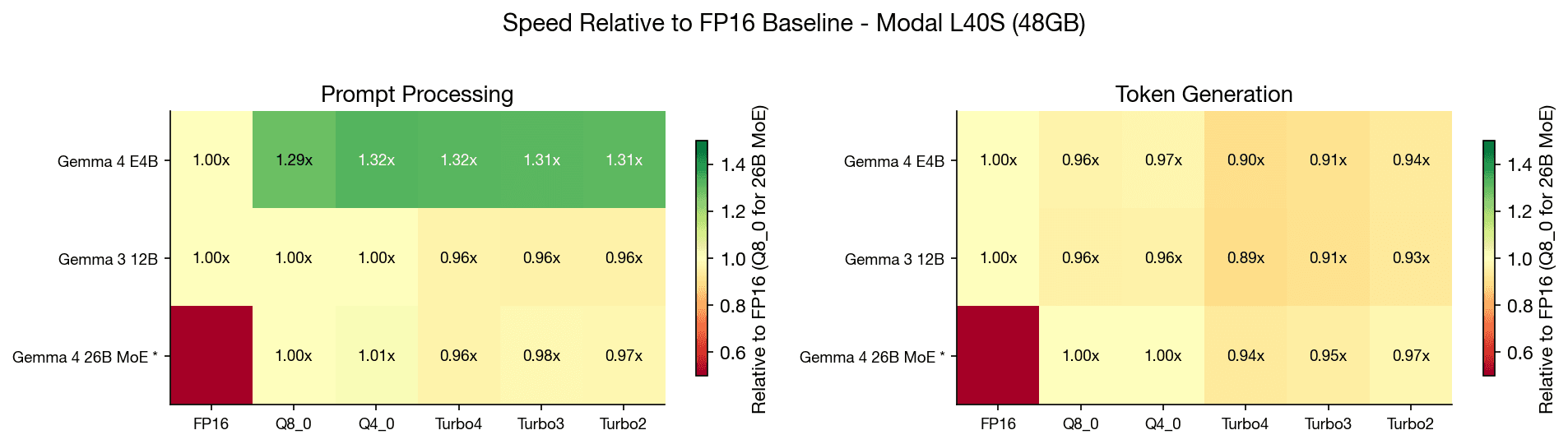

Speed: what the L40S reveals

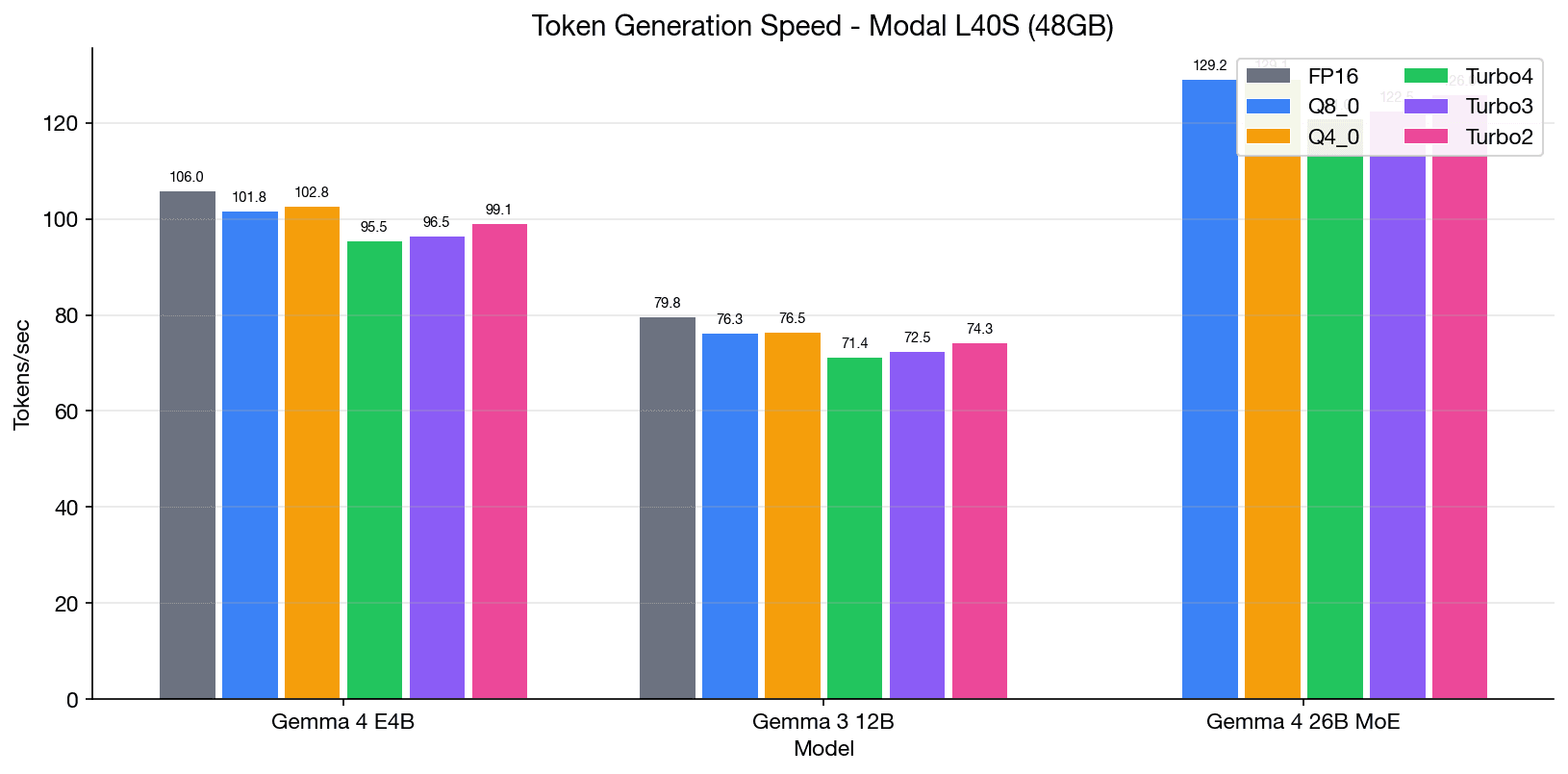

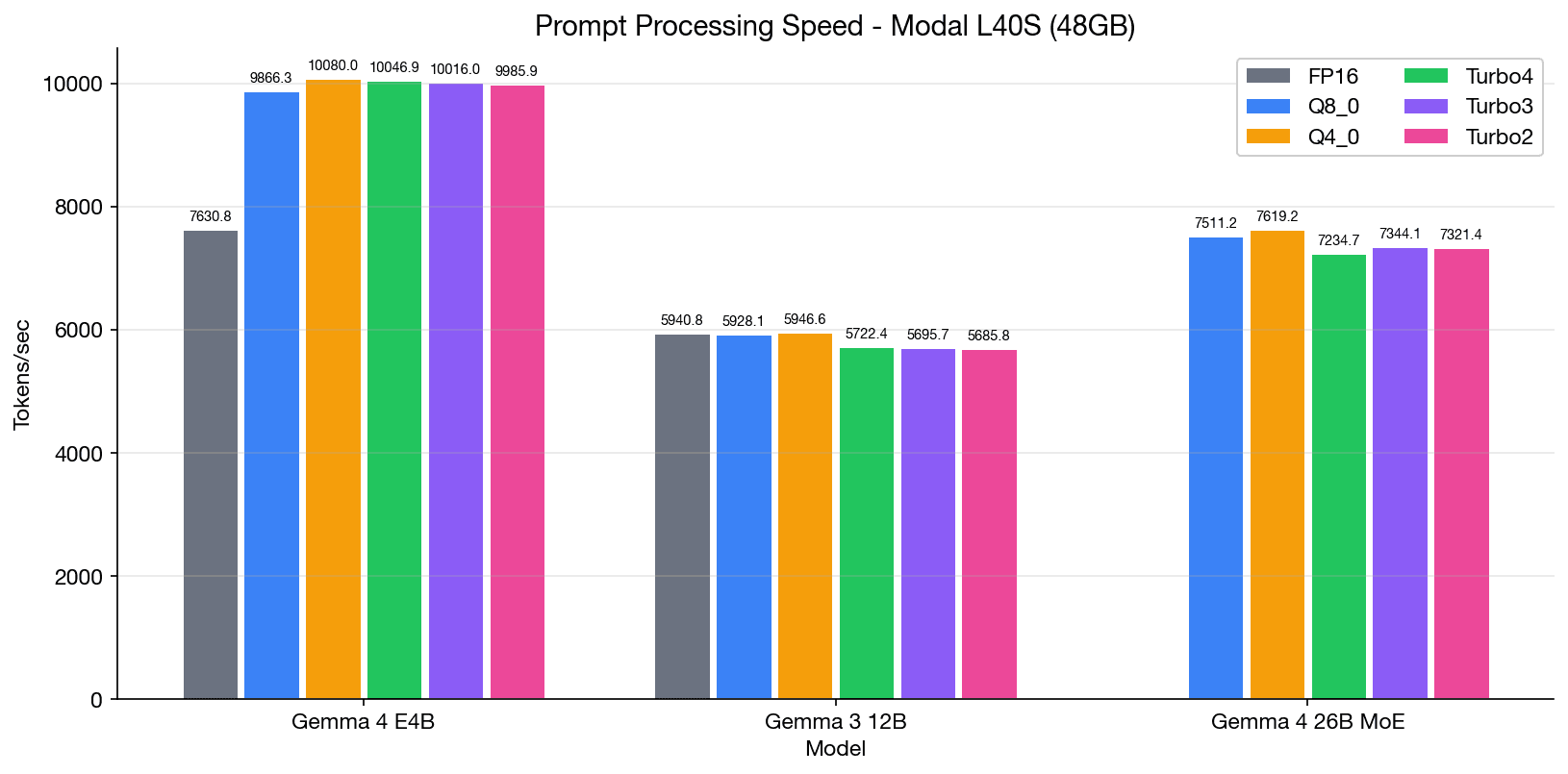

Gemma 3 12B is flat. PP hovers around 5900 tok/s, TG around 72 to 80 tok/s, whether the cache is FP16 or Turbo3. On the M4 the same 12B-class model was memory-bound and Q4/Turbo beat FP16 by almost 3x. On L40S, memory bandwidth (864 GB/s) is plentiful enough that a 12B's KV cache at 512 tokens never becomes the bottleneck. Compute dominates. So: cache compression matters less as you move up the GPU tier, at least at short context.

Gemma 4 E4B shows the opposite. FP16 KV runs at 7630 tok/s PP, Q4_0 at 10080 tok/s, a 32% speedup. The E4B is small enough that even on L40S the cache is a noticeable slice of active memory, and shrinking it helps. PLE models apparently still benefit from KV compression.

Gemma 4 26B MoE is the speed king. 7600 PP tok/s and 129 TG tok/s, beating both smaller models on generation. The MoE sparsity advantage (4B active per token) shows up exactly where you'd guess.

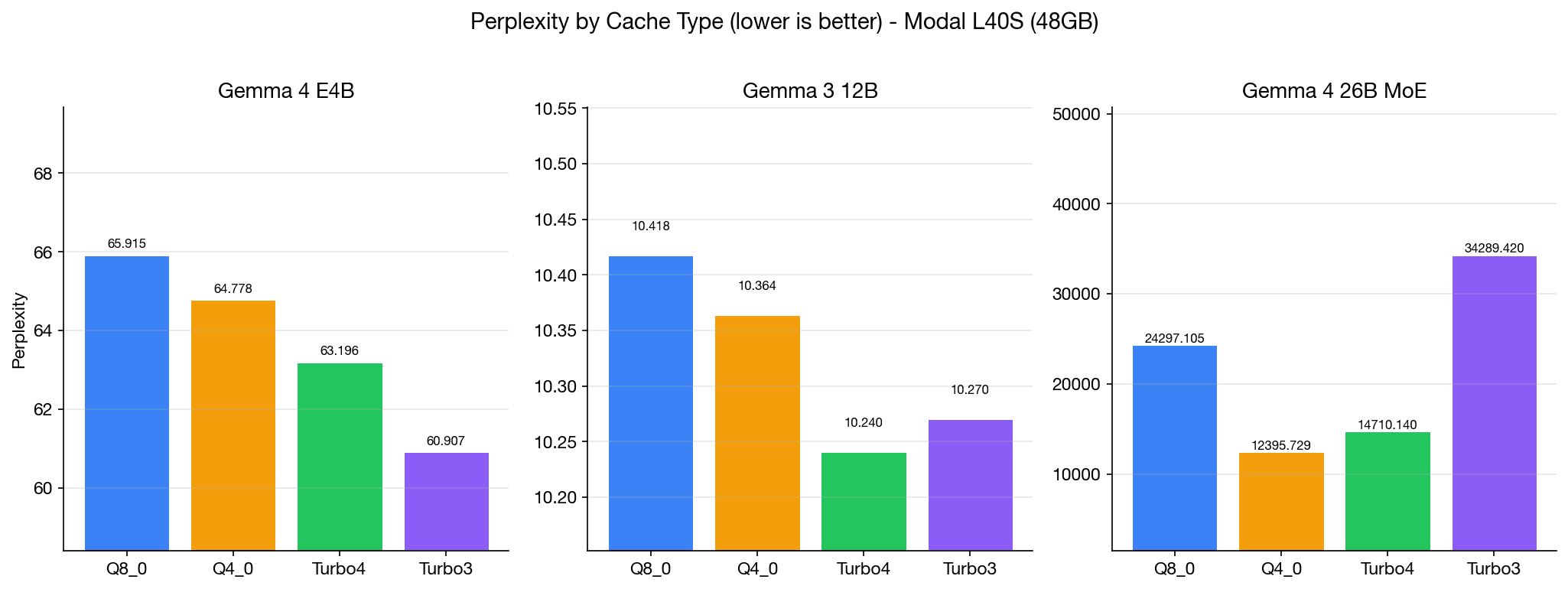

Perplexity: Gemma 3 12B is the story

Cache	Gemma 3 12B PPL
Q8_0	10.42
Q4_0	10.36
Turbo4 (4.25 bpv)	10.24
Turbo3 (3.5 bpv)	10.27

On wikitext-2-raw at ctx=512 / 128 chunks, Turbo4 and Turbo3 are both a touch better than Q8_0. That's the payoff TurboQuant+ was designed to produce: lossy cache compression that preserves attention structure well enough to match the baseline, while cutting cache memory by 3.7x to 4.6x. On a card where 8GB of your 48 is eaten by model weights and another slice by activations, that difference is what turns an 8K-context run into a 32K-context one.

What went sideways: Gemma 4

Both Gemma 4 models come out broken under the fork:

Cache	Gemma 4 E4B PPL	Gemma 4 26B MoE PPL
Q8_0	65.9	24,297
Q4_0	64.8	12,396
Turbo4	63.2	14,710
Turbo3	60.9	34,289

A functional model on wikitext-2 should land in the 6 to 12 range. Gemma 3 12B at 10.4 is textbook. The Gemma 4 numbers are an order of magnitude worse on E4B and three orders of magnitude worse on the MoE. Something is fundamentally off.

Looking at the llama-perplexity startup logs, the TurboQuant+ fork prints this on every run, including Q8_0:

Copyllama_kv_cache: upstream attention rotation disabled (TurboQuant uses kernel-level WHT)
llama_kv_cache: attn_rot_k = 0, n_embd_head_k_all = 512

The fork replaces standard attention rotation with its own Walsh-Hadamard transform at the kernel level. On Gemma 3, Qwen, and presumably Llama, this substitution is transparent. On Gemma 4 something about the PLE layer (E4B) or MoE router (26B A4B) at head dim 512 doesn't play nicely with it, even when you pick Q8_0 and no actual compression is involved.

I didn't burn the rest of the Modal budget debugging this. The honest read is that the TurboQuant+ fork is currently validated on pre-Gemma-4 architectures and needs upstream work before it can claim Gemma 4 support.

What the numbers do and don't say

They do say:

• Turbo3 and Turbo4 preserve quality on Gemma 3 12B. If you're running dense 7B to 14B models on a rented L40S and want 128K context to fit, this is the compression scheme worth evaluating.
• At pp=512 on an L40S, KV cache compression won't speed up a 12B-class model. To move wallclock numbers you need longer context or a narrower memory-bandwidth envelope (i.e. a MacBook).

They don't say:

• Anything about Gemma 4 under a working KV compression path. That needs either a fixed fork or a different implementation.
• Anything about long context (32K+). The whole sweep ran at ctx=512, which is the regime where KV compression matters least. The obvious follow-up is running the same sweep at 32K or 128K on Gemma 3 12B.

How this was actually run

All benchmarks ran inside a single Modal app that defines the CUDA image once, caches it, and exposes two functions for speed and perplexity. The CLI runner iterates a config matrix and accumulates spend against a $14 cap, so you can't accidentally blow the budget.

Two things that cost me an hour each and might save you time:

1. The TheTom/turboquant_plus repo on GitHub is the paper site, not the fork. The llama.cpp fork lives at TheTom/llama-cpp-turboquant. The README in turboquant-eval had the wrong URL, which ate one image build before I noticed.
2. The nvidia/cuda:12.4.1-devel-ubuntu22.04 image has the CUDA toolkit but not libcuda.so.1. Link step fails. Fix: symlink libcuda.so to libcuda.so.1 under /usr/local/cuda/lib64/stubs, pass -DCMAKE_EXE_LINKER_FLAGS='-Wl,-rpath-link,/usr/local/cuda/lib64/stubs' to cmake, and set LIBRARY_PATH=/usr/local/cuda/lib64/stubs for the build step. Pin -DCMAKE_CUDA_ARCHITECTURES=89 (Ada Lovelace, L40S) so cmake doesn't need a GPU at build time.

To reproduce end to end: clone the repo, modal token new, then python3 scripts/run_modal_bench.py --phase all --cap 14.0. Full sweep finishes in under ten minutes of wall time and costs under $3.

Loose ends

The Modal credit I didn't spend is still sitting there, which is a fine problem to have. Two obvious next posts, in rough order of how useful I think they'd be:

1. Long-context sweep (16K, 32K, 128K) on Gemma 3 12B. This is where Turbo3 vs Q4_0 should actually pull ahead on speed, not just quality, and where the compression story gets interesting.
2. A sanity pass with upstream llama.cpp on Gemma 4, to confirm whether the perplexity comes back to the 6 to 12 range once the TurboQuant-specific attention path is out of the picture. If it does, the fork has a clear upstream issue to file.

If either one is the post you want, tell me and I'll prioritize it.
